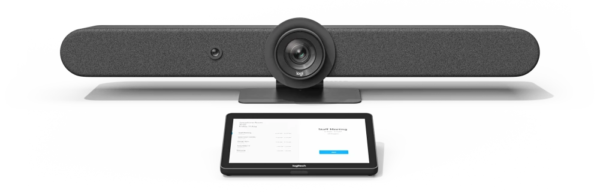

Logitech Rally Bar – All in One Video Bar

SEE WHAT YOU’VE BEEN MISSING
With a dual-camera system and RightSight 2 auto-framing technology, Rally Bar welcomes remote participants to the conversation. Choose Grid View to eliminate empty space and frame each person in their own stream, Speaker View to highlight the active speaker, or Group View to capture everyone in the room.

LOOKS BRILLIANT
An innovative dual-camera system with optical zoom and an AI Viewfinder delivers fluid, cinematic video in medium and large rooms.

SOUNDS AWESOME
Rally Bar’s advanced audio engineering delivers powerful, room-filling sound and makes sure every voice is clearly heard.

Description

Technical Specifications

Certifications & Compatibility

  • Certifications
  • Appliance Mode: Supports compatible video conferencing software in appliance mode (no PC required), including
    • Microsoft Teams Rooms on Android
    • Zoom Rooms
    • RingCentral Rooms™
    • Tencent Meeting Rooms
  • USB Mode: Plug-and-play USB connectivity with virtually any video conferencing application
  • For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications

General Specifications

  • Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
  • Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
  • Device Management: Logitech Sync
  • Displays Supported: 2 (up to 1080p)
  • Display Resolution: Up to 1080p
  • Network Protocol Support: IPv4, IPv6
  • Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Camera

  • Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
  • Pan: Motorized ±25°
  • Tilt: Motorized ±15°
  • Zoom: 15X HD zoom (5X optical and 3X digital)
  • Diagonal Field of View: 90°
  • Horizontal Field of View: 82.1°
  • Vertical Field of View: 52.2°
  • Total Room Coverage (field of view + pan and tilt): 132.1° Horizontal x 82.2° Vertical

Speakers

  • Drivers: 2x 70 mm
  • Sensitivity: 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
  • Rated Power: 8W
  • THD: 1kHz <2% at 1W
  • Speaker Sampling Rate: 48 kHz
  • Impedance: 4 Ohms

Microphones

  • Frequency Response: 90Hz – 16kHz
  • Sensitivity: >-36dBFS +/-1 dB @ 1Pa
  • Microphone data rate output: 48KHz
  • Pickup Range: Up to 7 m
  • Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
  • Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
  • Noise suppression: AI based de-noising algorithm
  • Add-on Mics: Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms

RightSense™ Technologies

  • RightLight: Renders natural skin tones for each participant
  • RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
  • RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
  • Grid View: Detect and frame all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview

Interfaces

  • HDMI Out: 2 (up to 1080p)
  • HDMI In: 1
  • MAC: 3x Type A, 1x Type C
  • Network: 10/100/1G Ethernet
  • WiFi: 802.11a/b/g/n/ac
  • External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
  • Remote Control: Bluetooth® Low Energy

Power & Cables

  • Power supply: Auto-sensing
  • Operating Voltage/Power: 100-240V, 19V, 4.74A
  • Power Supply Dimensions: 127 mm x 51 mm x 30 mm
  • DC Cable: 1.5 m
  • AC Cable: 1 m
  • HDMI 1.4 Cable: 2 m
  • USB A to USB C 3.0 Cable: 2.2 m

Environmental

  • Operating Temperature: 0 to 40°C
  • Storage Temperature: -40 to 70 °C
  • Humidity: 10 to 95%
  • BTU/hr: 57 idle, 64 in meeting

Security

  • Full Disk Encryption: AES-128
  • Data Encryption: Symmetric Keys, PKI
  • Device Identity: Protected by device attestation
  • Device Access: Authenticated using API
  • Key Protection: Arm TrustZone, RPMP

Accessories

  • Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
  • Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
  • Connectivity: Logitech Strong USB (10 m, 25 m, 45 m)
  • Touch Controller: Logitech Tap and Tap IP
